Gasoline Fuel Injector Technologies Compared: Multi-Hole, Electromagnetic, Piezo, and Pintle

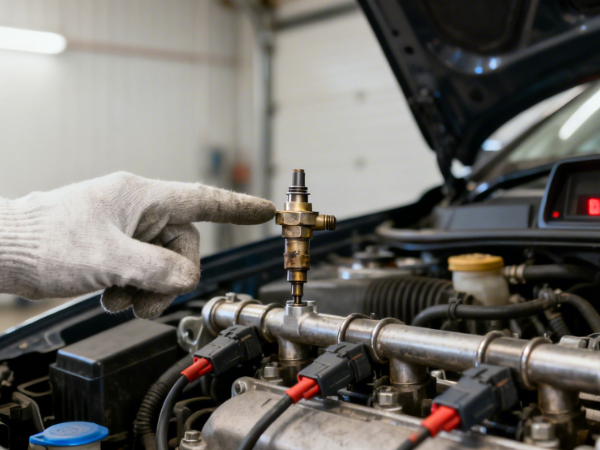

Introduction

The automotive powertrain landscape has undergone a monumental shift over the past few decades, evolving from crude air-fuel mixing devices to hyper-precise electronic metering systems. At the core of this engineering transformation is the gasoline fuel injector, a high-speed electromechanical valve designed to deliver exact quantities of fuel into the combustion chamber. Early carbureted engines and basic single-point injection (SPI) systems relied heavily on manifold vacuum, which resulted in uneven fuel distribution across cylinders, sluggish throttle response, and excessive fuel waste. The transition to modern electronic gasoline fuel injectors solved these legacy inefficiencies, enabling internal combustion engines to extract maximum energy from every drop of fuel.

Today, three uncompromising engineering imperatives dictate gasoline engine development: maximizing fuel efficiency, elevating specific power output, and meeting stringent global emission regulations such as China-6b, Euro 6d, and US EPA Tier 3. Achieving these goals depends heavily on the injector's ability to optimize fuel atomization and spray geometry. By breaking liquid gasoline into microscopic fuel droplets, a high-performance gasoline injector promotes rapid vaporization and thorough mixing with intake air. This level of precise fuel control eliminates unburned hydrocarbons, minimizes soot formation, and unlocks superior thermal efficiency across all engine load conditions.

To meet the diverse demands of modern mobility—from high-volume economy commuter vehicles to ultra-high-performance sports cars and general power equipment—automotive engineers rely on distinct injection hardware architectures. This comparative guide evaluates four pivotal technologies shaping the industry:

• Multi-hole fuel injectors, which utilize laser-drilled orifices for superior atomization in Gasoline Direct Injection (GDI) engines.
• Electromagnetic fuel injectors, which leverage solenoid coils for highly reliable, cost-effective pulse regulation.
• Piezoelectric fuel injectors, which employ expanding ceramic crystals to deliver microsecond micro-dosing in high-performance engines.
• Pintle fuel injectors, which feature self-cleaning pin designs ideal for legacy engines, small equipment, and varying fuel qualities.

Multi-Hole Fuel Injectors: Precision Atomization for Direct Injection

As internal combustion engines shifted toward Gasoline Direct Injection (GDI) to maximize volumetric efficiency, traditional single-hole or pintle designs proved insufficient for high-pressure in-cylinder environments. Multi-hole fuel injectors emerged as the definitive solution for modern GDI platforms, utilizing advanced micro-machining and laser-drilled orifice geometry. By deploying multiple precisely angled spray holes—often ranging from 6 to 12 micro-orifices per nozzle—a multi-hole fuel injector can customize the spray pattern to match the unique air-flow dynamics and bowl geometry of the engine's combustion chamber.

The primary engineering advantage of the multi-hole fuel injector lies in its ability to generate ultra-fine fuel atomization under extreme working pressures. When liquid gasoline is forced through micro-drilled spray holes at pressures exceeding 350 bar, the liquid jet shatters into fine droplets with a low Mean Droplet Diameter (SMD). This rapid atomization accelerates fuel evaporation, preventing unburned liquid fuel from forming wet films on the cylinder walls and piston crown—a common phenomenon known as wall wetting, which leads to excessive soot and particulate emissions.

This precision spray control plays a vital role in helping automotive manufacturers comply with stringent global environmental mandates, including China-6b, Euro 6d, and US EPA Tier 3 standards. By eliminating localized rich-burn zones and minimizing wall wetting, multi-hole gasoline injectors drastically reduce raw Particulate Matter (PM) and Particulate Number (PN) emissions straight from the combustion chamber, reducing the thermal load and size requirements on downstream Gasoline Particulate Filters (GPFs).

Today, multi-hole fuel injectors are the dominant industry standard across high-efficiency GDI passenger cars, hybrid powertrains, and downsized turbocharged engines. Their ability to deliver targeted spray plumes ensures stable flame propagation during cold starts, smooth lean-burn operation, and maximum power output across varying engine speeds and load conditions.

Electromagnetic Fuel Injectors: Durable and Cost-Effective Pulse Control

Among all electronic fuel metering technologies, electromagnetic fuel injectors—commonly referred to as solenoid fuel injectors—represent the most mature and widely deployed solution in automotive history. These units operate on fundamental electromagnetic principles: an integrated solenoid coil creates a magnetic field when energized by the Engine Control Unit (ECU), lifting an internal armature valve off its seat against a calibrated return spring. Once the electrical signal ceases, the return spring rapidly forces the valve closed, stopping the fuel flow with exact pulse-width timing.

The enduring popularity of the electromagnetic fuel injector stems from its exceptional operational reliability, robust thermal stability, and cost-effective manufacturing process. Engineered with durable magnetic alloys and robust internal coil windings, solenoid injectors can withstand continuous thermal cycling, heavy engine vibration, and varying fuel quality without compromising calibration accuracy. For high-volume automotive production, their simple mechanical design offers an optimal balance between low unit cost and long-term operating durability across hundreds of thousands of miles.

However, modern engineering demands reveal specific trade-offs inherent to solenoid actuation speeds. While a modern electromagnetic fuel injector opens and closes in milliseconds, its response time is physically constrained by magnetic field build-up and decay delays. Under ultra-high operating pressures—such as late-generation GDI systems exceeding 350 to 500 bar—the hydraulic force acting against the valve seat can exceed the opening force generated by standard solenoid coils, making microsecond-level micro-dosing challenging compared to faster piezoelectric actuators.

Despite these high-pressure limitations, electromagnetic fuel injectors maintain a dominant market presence in Port Fuel Injection (PFI) light passenger vehicles, commercial delivery fleets, two-wheelers, and entry-level turbocharged powertrains. In low-to-medium pressure gasoline systems, solenoid injectors provide unmatched economic value, dependable cold-start behavior, and straightforward serviceability, making them an indispensable component of global transportation.

Piezoelectric Fuel Injectors: Ultra-Fast Micro-Dosing for High-Performance Engines

At the apex of precision fuel delivery, piezoelectric fuel injectors offer unmatched responsiveness for high-performance and luxury powertrains. Unlike traditional solenoid units that rely on electromagnetic coils, a piezoelectric fuel injector utilizes a stacked pile of microscopic ceramic crystals that expand physically when an electrical charge is applied. This direct mechanical expansion allows the injector needle to lift almost instantaneously, achieving actuation speeds up to five times faster than standard solenoid valves.

The defining advantage of the piezoelectric fuel injector is its capability for microsecond-level micro-dosing. Because the piezo stack can switch states in fractions of a millisecond, the Engine Control Unit (ECU) can command up to five or more distinct micro-injections per single combustion stroke. This precise pulse control enables pilot injections that pre-warm the combustion chamber—drastically smoothing out peak pressure spikes, reducing engine combustion knock, and lowering operational acoustic noise.

Furthermore, piezo-actuated spray control maximizes in-cylinder thermal efficiency and maintains ultra-lean burn stability under lean-stratified charge conditions. By precisely shaping the fuel cloud right at the spark plug gap during the compression stroke, piezoelectric gasoline injectors ensure complete combustion of lean air-fuel mixtures, cutting fuel consumption during part-load cruising while maximizing specific horsepower at wide-open throttle.

From an engineering and procurement perspective, integrating piezoelectric fuel injectors involves specific trade-offs. The manufacturing of multi-layer piezo crystal stacks requires high-precision cleanroom environments, driving up component costs compared to conventional solenoid hardware. Additionally, piezo drivers require higher ECU operating voltages. However, for premium luxury vehicles, high-revving sports cars, and advanced downsized engines aiming for maximum efficiency and refinement, the unmatched speed and spray flexibility of piezoelectric technology deliver superior driving dynamics and lower tailpipe emissions.

Pintle Fuel Injectors: Self-Cleaning Reliability for Legacy and Auxiliary Power

Before multi-hole nozzle geometry became widespread, the pintle fuel injector served as the fundamental workhorse of early electronic port fuel injection systems. The core design of a pintle fuel injector features an integrated mechanical pin—or pintle—that extends through the center orifice of the nozzle tip. When the valve actuates, the pintle lifts outward or inward, forming an annular opening that directs liquid fuel into a hollow-cone spray pattern ideal for intake manifold mixing.

The primary mechanical advantage of the pintle fuel injector is its unique self-cleaning action. As the pintle moves rapidly back and forth through the central discharge orifice during every injection cycle, it physically scrapes away carbon deposits, varnish build-up, and heavy fuel residues. This continuous mechanical wiping motion gives pintle nozzles exceptional resistance to orifice clogging, making them far less sensitive to dirty fuel or low-grade gasoline compared to micro-drilled multi-hole units.

When compared directly with modern multi-hole nozzles, pintle designs present clear trade-offs in spray flexibility and atomization finesse. While multi-hole injectors produce finer droplet sizes and localized spray plumes suited for in-cylinder GDI environments, pintle units generate a wider, heavier fuel spray. Under low injection pressures (3 to 5 bar), pintle atomization is less refined, which can increase wall wetting inside intake runners if used in modern high-compression engines.

Despite these spray limitations, pintle fuel injectors remain highly valued for applications where mechanical durability and low cost outweigh ultra-fine emission targets. They are extensively deployed across:

• Legacy Automotive Platforms: Providing reliable, low-maintenance replacement parts for older port-injected passenger vehicles.
• General Power & Auxiliary Equipment: Powering commercial lawnmowers, portable generators, water pumps, and small utility vehicles.
• Marine & Agricultural Machinery: Delivering robust fuel metering in harsh operating environments subject to high moisture, dust, and variable fuel quality.

Technical Comparison Matrix: Evaluating the Four Injector Types

To select the ideal fuel injection architecture, automotive engineers and procurement specialists must carefully weigh performance metrics against cost constraints and operating conditions. Each of the four major technologies—multi-hole fuel injectors, electromagnetic fuel injectors, piezoelectric fuel injectors, and pintle fuel injectors—presents a unique set of trade-offs across response time, pressure tolerance, atomization quality, and mechanical durability.

When evaluating the cost-to-performance ratio, electromagnetic fuel injectors and pintle fuel injectors offer significant economic advantages for high-volume manufacturing and cost-sensitive applications. Conversely, multi-hole fuel injectors and piezoelectric fuel injectors require advanced manufacturing processes—such as high-precision laser micro-drilling and cleanroom ceramic synthesis—driving higher unit costs that are offset by maximum fuel economy and strict emission compliance.

From an environmental adaptability perspective, pintle designs excel in harsh operating environments with inconsistent fuel quality, thanks to their mechanical pin wiping action. Solenoid injectors provide robust thermal endurance across standard operating cycles. However, multi-hole and piezoelectric units require high-grade fuel filtration to prevent micro-orifice clogging and maintain precise droplet geometry over extended service lifespans.

Automotive engineers selecting injection hardware should adhere to clear design guidelines:

• For High-Volume PFI & Entry-Level Engines: Prioritize electromagnetic fuel injectors or pintle fuel injectors to achieve low unit costs, excellent mechanical durability, and simple ECU driver integration.
• For Clean-Burning GDI & Downsized Turbocharged Engines: Deploy multi-hole fuel injectors to meet Euro 6d/China-6b particulate limits through tailored spray angles and rapid droplet evaporation.
• For Ultra-High-Performance & Luxury Powertrains: Specify piezoelectric fuel injectors to leverage multi-pulse micro-dosing for maximum knock control, lean-burn stability, and smooth engine acoustics.

Diagnostic and Preventive Maintenance Best Practices

Maintaining peak engine performance and extending the operational lifespan of gasoline fuel injectors requires a proactive diagnostic and preventive maintenance strategy. Over tens of thousands of operating hours, injectors are subjected to intense thermal cycling, high hydraulic pressures, and continuous mechanical movement. Without proper care, internal components gradually degrade, leading to poor fuel atomization, uneven cylinder balance, increased tailpipe emissions, and potential engine damage.

Automotive technicians and fleet maintenance teams frequently encounter four primary failure modes across gasoline injection hardware:

• Carbon Fouling and Deposit Accumulation: High in-cylinder temperatures cause unburned fuel vapors to bake onto nozzle tips, clogging micro-orifices in multi-hole fuel injectors or restricting flow around pintle valves.
• Solenoid Coil and Piezo Stack Degradation: Continuous electrical resistance and thermal stress can break down internal coil insulation in an electromagnetic fuel injector or lead to structural micro-cracks within a piezoelectric fuel injector crystal stack.
• Internal Valve Needle Sticking: Contaminants or gum deposits in low-quality gasoline can cause internal valve needles to bind, leading to fuel starvation or stuck-open conditions.
• High-Pressure Seal and Seat Leakages: Worn internal valve seats or degraded external O-rings allow fuel to drip uncontrollably into combustion chambers, causing hard hot starts, oil dilution, and catalyst damage.

To prevent premature component failure, service teams should enforce strict preventive maintenance protocols. Regularly replacing fuel filters with high-efficiency media prevents abrasive micro-particulates from entering high-pressure fuel rails. Additionally, using high-quality detergents and fuel additive treatments regularly cleans carbon deposits from spray orifices, preserving original spray patterns and ensuring stable fuel delivery.

When troubleshooting performance issues, technicians rely on advanced diagnostic procedures. Oscilloscope testing allows technicians to analyze pulse-width actuation signals and current waveforms from the Engine Control Unit (ECU) in real time, detecting shorted solenoid coils or sluggish piezoelectric response. Connecting diagnostic tools to monitor ECU fault codes—such as misfire counters or long-term fuel trim values—helps isolate erratic fuel delivery to specific cylinders before mechanical failure occurs.

For degraded or heavily fouled components, professional off-vehicle servicing can restore original factory performance. Technicians place injectors into ultrasonic cleaning baths to vibrate away baked-on carbon deposits from spray orifices and internal passages. Following cleaning, the injectors are mounted on an automated flow bench to measure dynamic flow volume, check seat tightness under pressure, and visually verify atomization geometry across all engine operating speeds.

Conclusion

The evolution of modern gasoline fuel injection technology highlights the critical role precise fuel delivery plays in optimizing internal combustion engine performance. As demonstrated across this comparative guide, multi-hole fuel injectors excel in high-pressure direct injection platforms by producing ultra-fine atomization that reduces particulate emissions. Electromagnetic fuel injectors remain the durable, cost-effective workhorse for high-volume port fuel injection, while high-speed piezoelectric fuel injectors offer microsecond micro-dosing for maximum thermal efficiency in performance powertrains. Meanwhile, time-tested pintle fuel injectors continue to deliver self-cleaning reliability for legacy vehicles and auxiliary general equipment operating under variable fuel conditions.

Looking toward the future of mobility, precision fuel injection hardware remains indispensable even as powertrains transition toward electrified hybrids, carbon-neutral e-fuels, and hydrogen combustion architectures. Selecting the right injection technology requires balancing actuation speed, operating pressure tolerance, spray pattern control, and manufacturing overhead. Automotive engineers, procurement professionals, and fleet managers must carefully align these mechanical capabilities with specific engine operating targets to ensure optimal fuel economy, long-term durability, and strict emission compliance across next-generation transport systems.

FAQs

Q1: What is the main difference between multi-hole and pintle fuel injectors?

Multi-hole fuel injectors utilize multiple laser-drilled orifices to generate ultra-fine spray plumes tailored for high-pressure Gasoline Direct Injection (GDI) engines. Pintle fuel injectors use a single center pin moving through an orifice to form a hollow-cone spray, offering a mechanical self-cleaning action that resists carbon buildup in low-pressure port fuel injection (PFI) systems.

Q2: Why are piezoelectric fuel injectors faster than electromagnetic (solenoid) injectors?

Piezoelectric fuel injectors use a stack of ceramic crystals that expand physically in microseconds when electrically charged, allowing near-instant needle movement. Electromagnetic injectors rely on generating a magnetic field through a copper solenoid coil to pull a valve armature, which introduces mechanical and magnetic delays during valve actuation.

Q3: How do multi-hole fuel injectors help meet strict emissions standards like Euro 6d and China-6b?

Multi-hole injectors split liquid fuel into microscopic droplets that evaporate rapidly inside the cylinder. This prevents wet fuel from coating cylinder walls (wall wetting) and eliminates localized rich-burn zones, drastically reducing raw unburned hydrocarbons (HC) and particulate matter (PM/PN) emissions directly at the combustion source.

Q4: Can I replace a solenoid fuel injector with a piezoelectric fuel injector?

No. Piezoelectric and solenoid injectors require completely different ECU driving electronics, operating voltage profiles, and fuel rail pressure configurations. Piezoelectric injectors operate at significantly higher voltages and require specialized control software that cannot run on standard solenoid driver circuits.

Q5: What are the best practices for preventing gasoline injector clogging?

To prevent injector fouling, always replace fuel filters at recommended intervals, use high-quality fuel containing detergent additives, and periodically run diagnostic scans for fuel trim variations. For fouled injectors, professional ultrasonic bath cleaning and flow bench recalibration can clear baked-on carbon deposits and restore original spray patterns.
